NWD Modern Tech™ Steel Garage Door

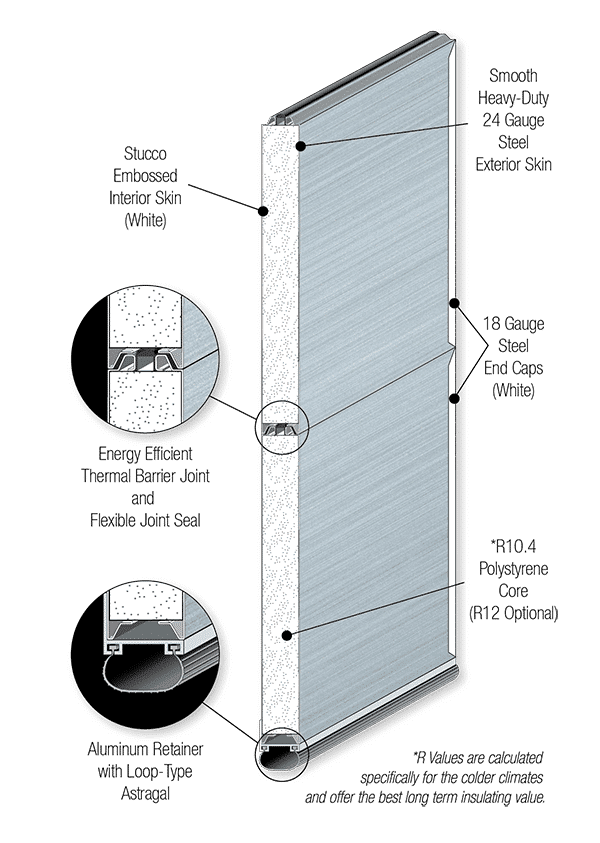

The NWD Modern Tech™ steel garage door offers the Beauty of Aluminum with the Strength of Steel. A 24 gauge steel face and a 2 inch thick R10.4 expanded polystyrene (EPS) core makes the Modern Tech™ extremely strong and energy efficient. It is built using Northwest Door’s time-proven sandwich-type construction method and comes in four finishes: Black Satin, Dark Bronze and Brushed Nickel and Bright White.

  • Section Joint: Tongue and Groove joint between sections with Thermal Break
  • Flexible Vinyl Joint Seal
  • 2″ thick High Density EPS, *R=10.4
    * R values are calculated specifically for the colder climates and offer the best long term insulating value.
  • Panel Types / Size
    • Contemporary Flush Smooth
  • Window Types / Sizes
    • Style A (41-1/4″ W x 14-5/16″ H)
    • Style B (41-1/4″ W x 7-5/32″ H)
    • Style C (14-5/16″ W x 14-5/16″ H)
  • Finish: Baked on polyester enamel

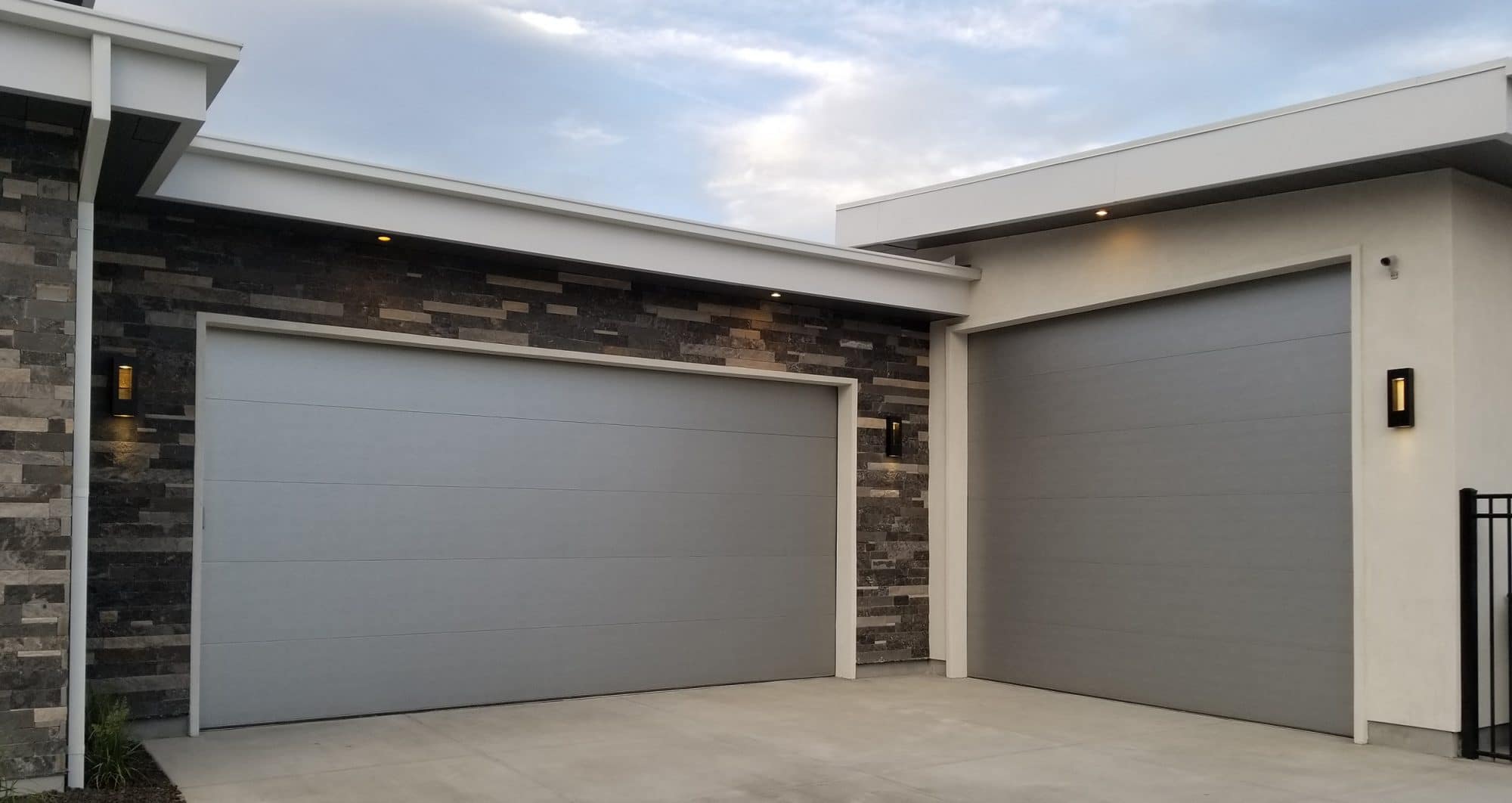

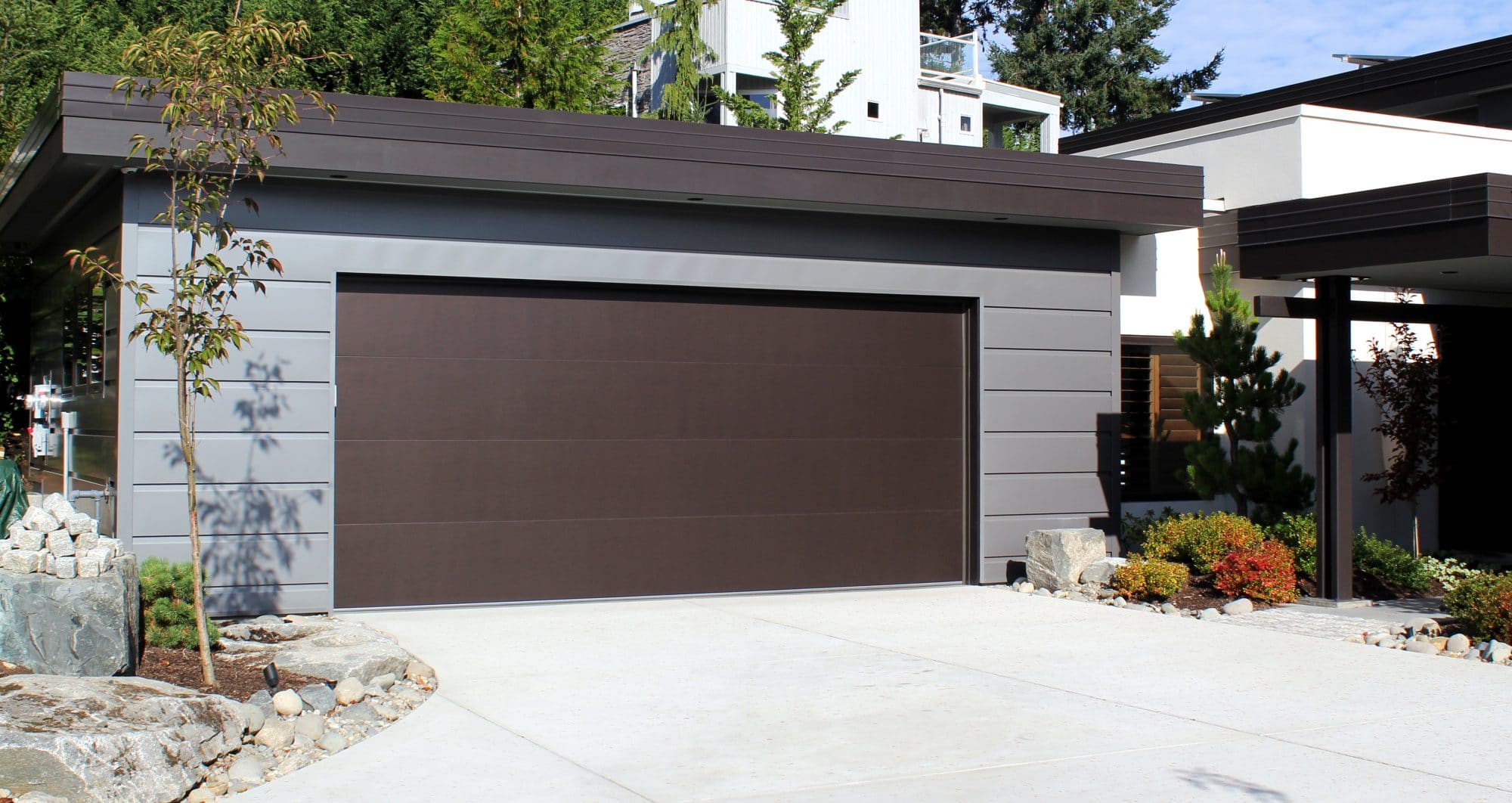

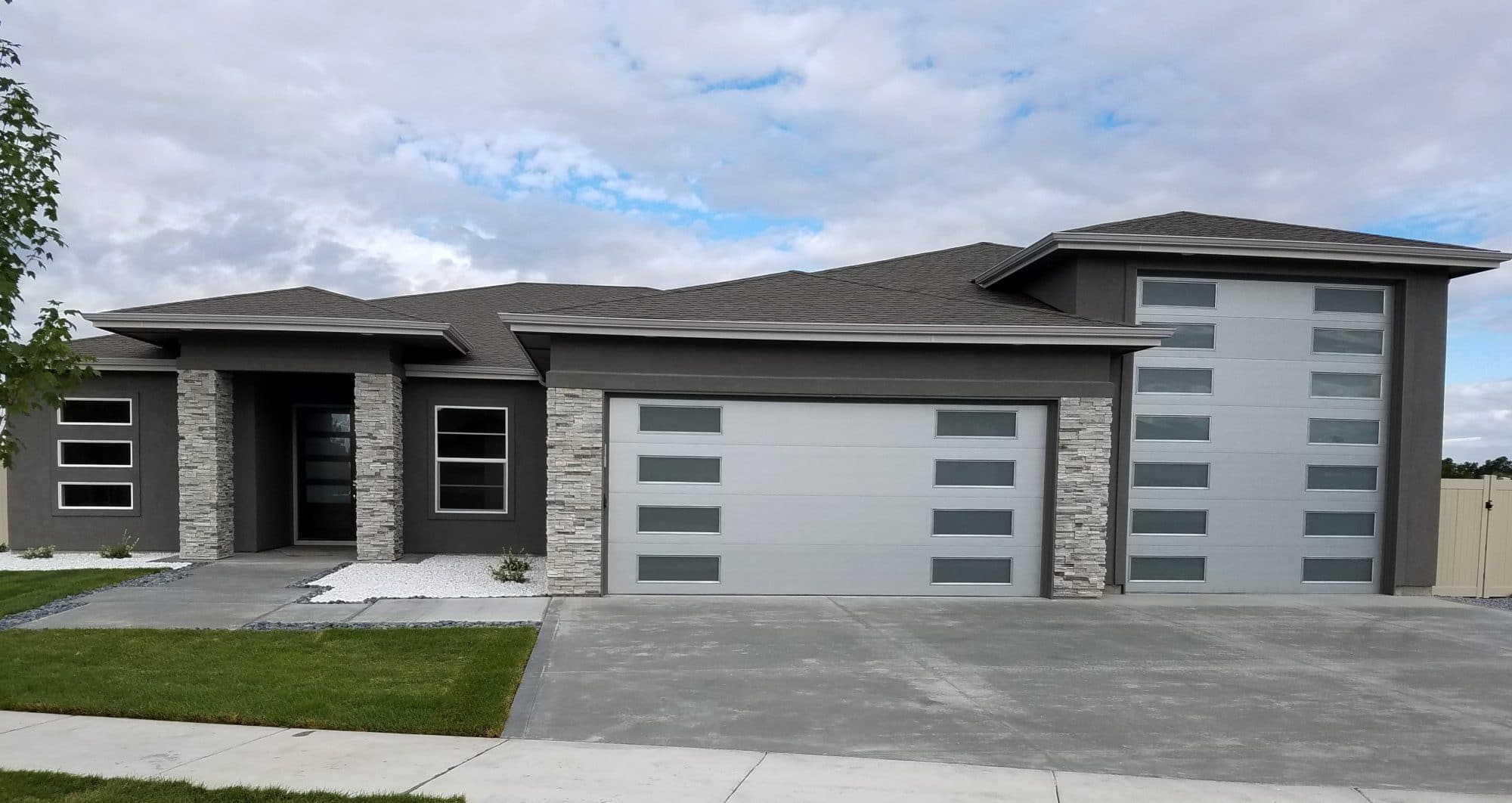

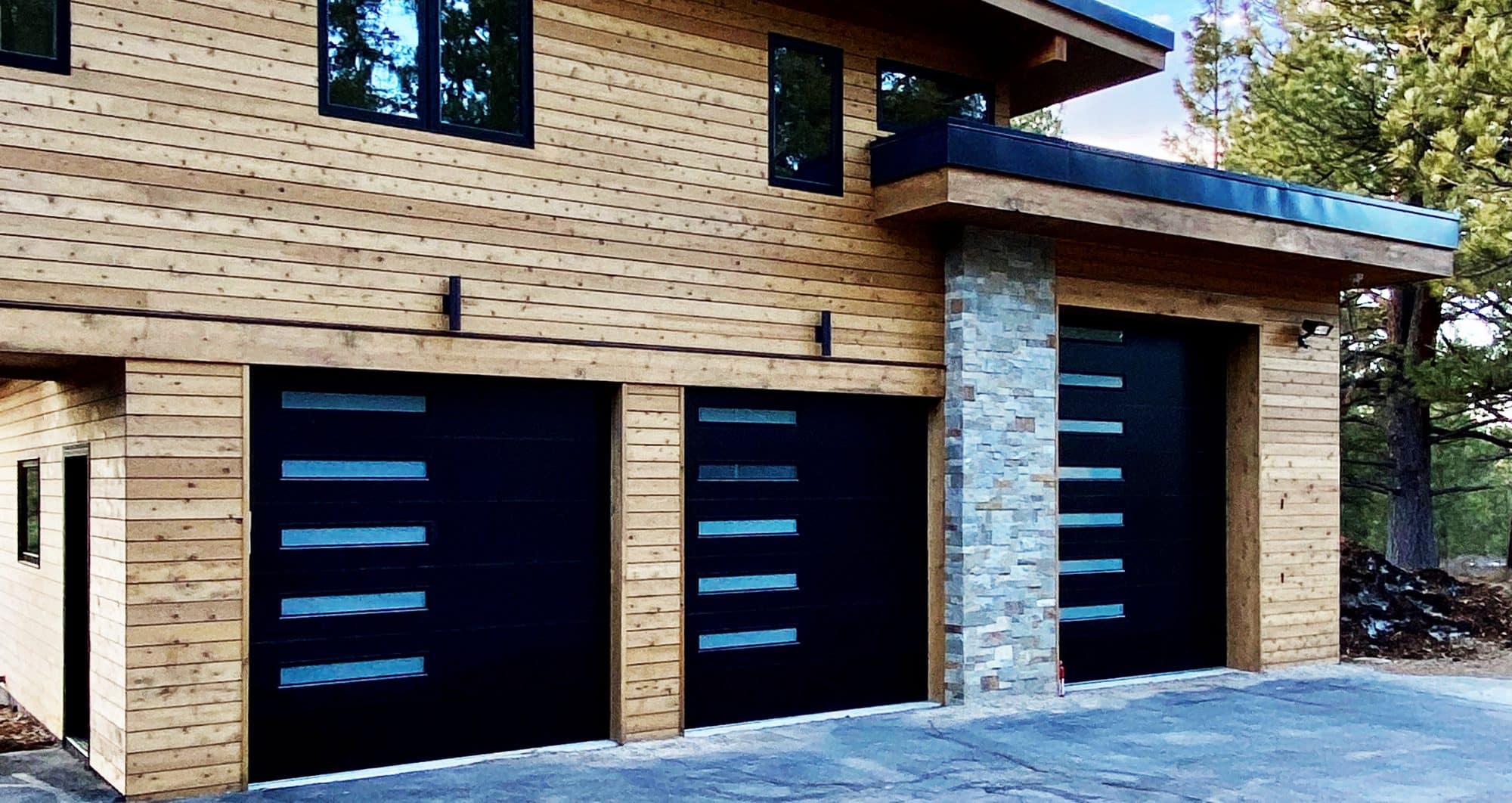

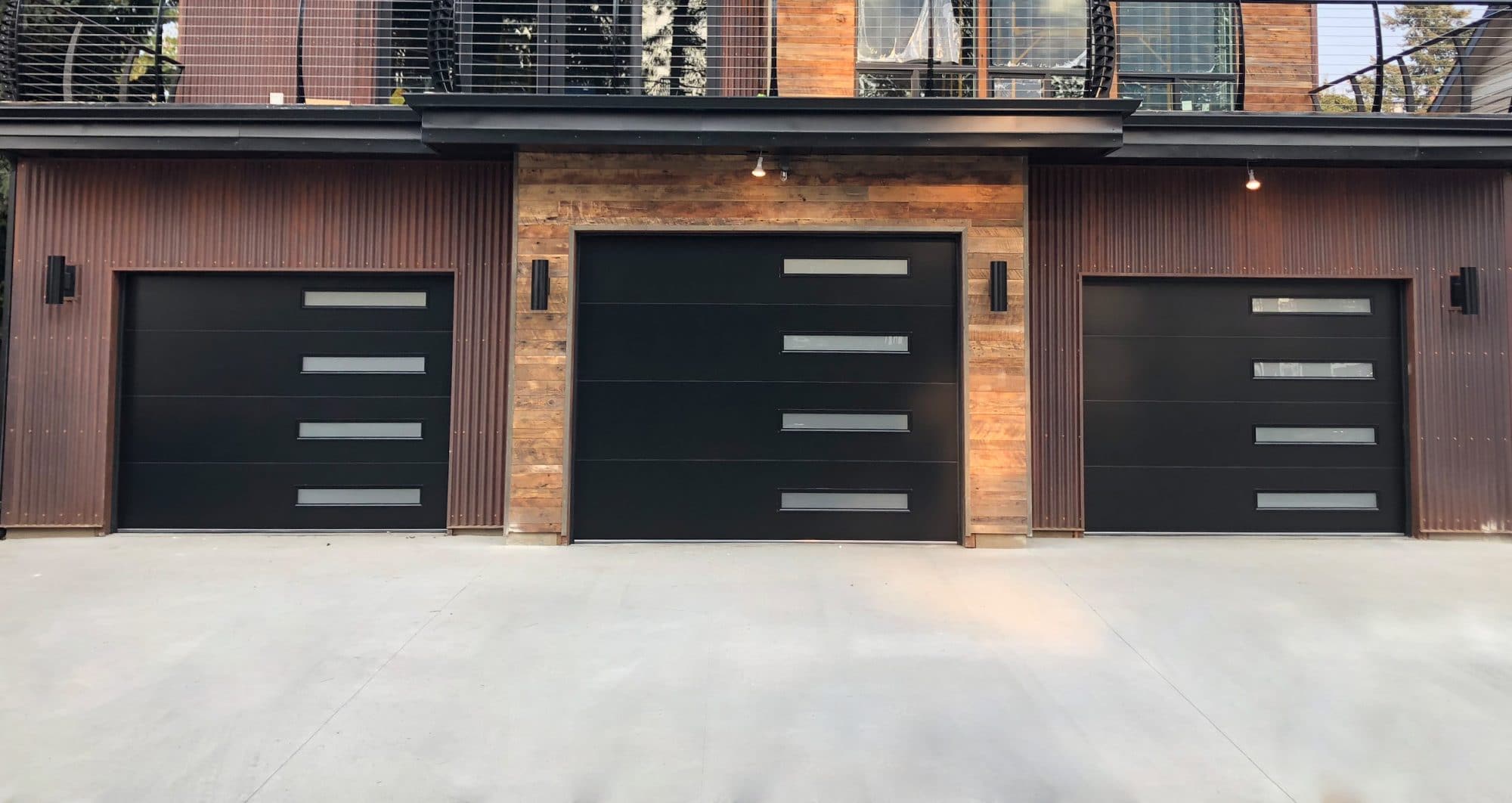

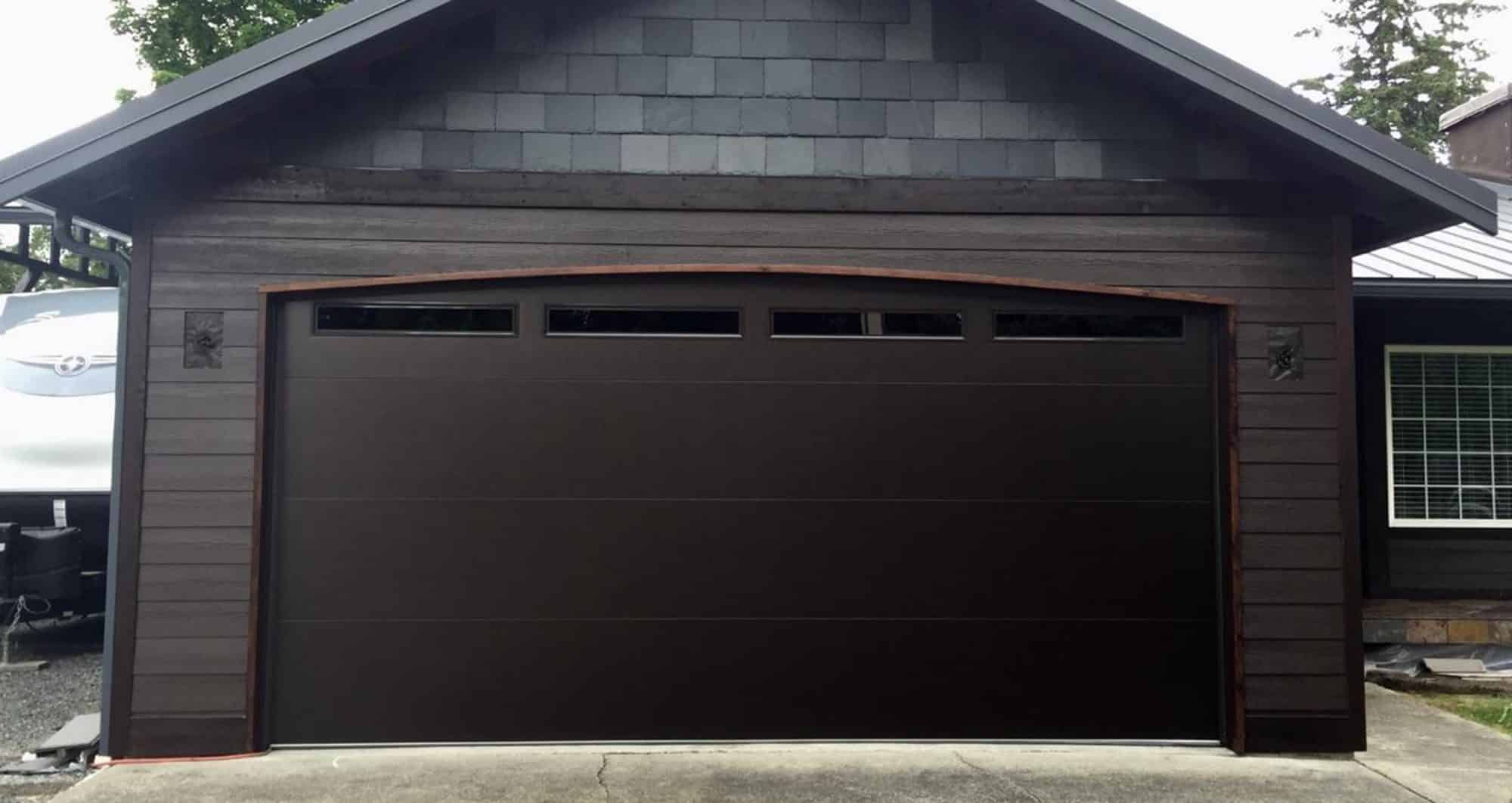

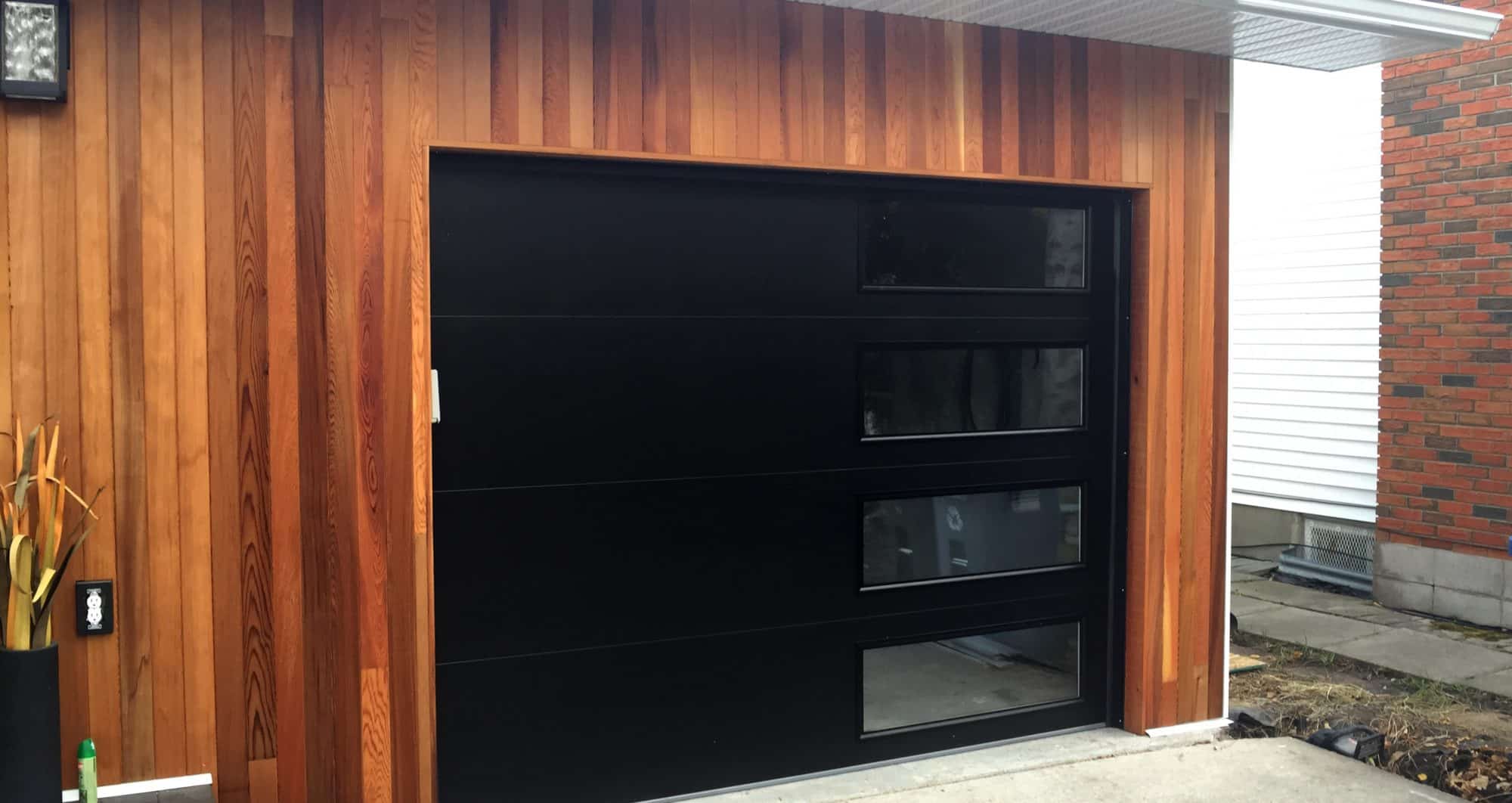

  • Colors selection: Black Satin, Dark Bronze, Brushed Nickel and Bright White
  • Bottom weather seal: U-shape loop type vinyl with adjustable aluminum retainer
  • Limited Lifetime Warranty

NWD Modern Tech™ Steel Garage Door

Description

RECOMMENDED OPTIONS

Extended Life Package

  • 25,000 Cycle Torsion Springs
  • White Nylon Ball Bearing Rollers
  • Heavy Gauge Hinges
  • Heavy Duty Cables

Insulated Glass

LiftMaster Model 85503 Smart Opener with Camera

OTHER OPTIONS

  • R12 EPS Core
  • 15 Window Designs
  • Glass Options
  • Low Clearance, High Lift, or Vertical Lift Hardware
  • White Nylon Ball Bearing Rollers
  • Angle Mounted Track
  • Double End Hinges and Long Stem Rollers
  • 25,000, 50,000 and 100,000 Cycle Torsion Springs
  • Powder Coated Hardware
